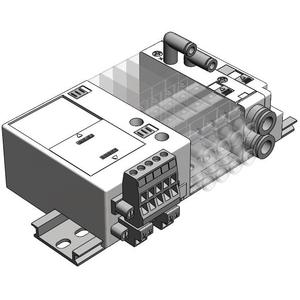

SS5J2-60S, Plug-in Manifold (for EX180)

The SJ series was developed by SMC to offer a small, low profile, low maintenance, 4-port solenoid valve and manifold.  The series was designed in a cassette type format, uses a card-edge type connector, and is available in two compact sizes.  The SJ2000 measures 7.5mm wide, while the large SJ3000 model is only 10mm wide.  The SJ2000/3000 can be combined in the same manifold, which can provide up to 24 stations and 32 solenoids.  The valves feature a special lock switch mechanism assuring they are securely locked together, and are compatible with Serial Interface units for both CC-Link and DeviceNet protocols.

• Serial wiring: EX180
• Component module: Mitsubishi Electric CC-Link Compliant (32 points), DeviceNet compliant (32 points), or DeviceNet compliant (16 points)
• Maximum 32 stations available as standard

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Component Module	-- Pick an Option -- 0 (Without SI Unit) V (Mitsubishi Electric: CC-Link Compliant, 32 Points) Q (DeviceNet Compliant, 32 Points) Q1 (DeviceNet Compliant, 16 Points)
Communication Connector	-- Pick an Option -- T-branch Type (or None w/o Component Module) A (Straight Type)
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations 21 Stations 22 Stations 23 Stations 24 Stations 25 Stations 26 Stations 27 Stations 28 Stations 29 Stations 30 Stations 31 Stations 32 Stations
SUP, EXH Block Mounting	-- Pick an Option -- U (U Side 2~10 Stations) D (D Side 2~10 Stations) B (Both Sides 2~32 Stations)
Pilot Specification	-- Pick an Option -- Internal Pilot S (Internal Pilot w/Built-in Silencer) R (External Pilot) RS (External Pilot w/Built-in Silencer)
SUP, EXH Block Fitting Spec	-- Pick an Option -- Straight Fitting L (Elbow Fitting, Upward) B (Elbow Fitting, Downward)
DIN Rail Length Specified	-- Pick an Option -- Standard Length 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations 21 Stations 22 Stations 23 Stations 24 Stations 25 Stations 26 Stations 27 Stations 28 Stations 29 Stations 30 Stations 31 Stations 32 Stations
