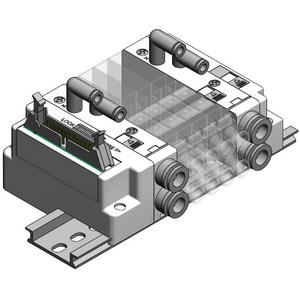

SS5J2-P, Plug-in Manifold, Flat Ribbon Cable Kit

The SJ series was developed by SMC to offer a small, low profile, low maintenance, 4-port solenoid valve and manifold.  The series was designed in a cassette type format, uses a card-edge type connector, and is available in two compact sizes.  The SJ2000 measures 7.5mm wide, while the large SJ3000 model is only 10mm wide.  The SJ2000/3000 can be combined in the same manifold, which can provide up to 24 stations and 32 solenoids.  The valves feature a special lock switch mechanism assuring they are securely locked together, and are compatible with Serial Interface units for both CC-Link and DeviceNet protocols.

• Flat ribbon cable kit (10, 20, 26 pin)
• Cassette type manifold, card edge connector
• P type kit: maximum 24 stations available as standard
• PG type kit: maximum 18 stations available as standard
• PH type kit: maximum 8 stations available as standard

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Flat Ribbon Cable	-- Pick an Option -- PD (Flat Ribbon Cable, 26 Pins) PGD (Flat Ribbon Cable, 20 Pins) PHD (Flat Ribbon Cable, 10 Pins)
Connector Entry	-- Pick an Option -- 1 (Upward) 2 (Lateral)
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations 21 Stations 22 Stations 23 Stations 24 Stations
SUP, EXH Block Mounting	-- Pick an Option -- U (U Side 2~10 Stations) D (D Side 2~10 Stations) B (Both Sides 2~24 Stations)
Pilot Specification	-- Pick an Option -- Internal Pilot S (Internal Pilot w/Built-in Silencer) R (External Pilot) RS (External Pilot w/Built-in Silencer)
SUP, EXH Block Fitting Spec	-- Pick an Option -- Straight Fitting L (Elbow Fitting, Upward) B (Elbow Fitting, Downward)
DIN Rail Length Specified	-- Pick an Option -- Standard Length 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations 21 Stations 22 Stations 23 Stations 24 Stations
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
