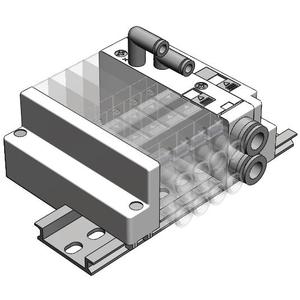

SS5J2-60, Non-plug-in Manifold, Individual Wiring

The SJ series was developed by SMC to offer a small, low profile, low maintenance, 4-port solenoid valve and manifold.  The series was designed in a cassette type format, uses a card-edge type connector, and is available in two compact sizes.  The SJ2000 measures 7.5mm wide, while the large SJ3000 model is only 10mm wide.  The SJ2000/3000 can be combined in the same manifold, which can provide up to 24 stations and 32 solenoids.  The valves feature a special lock switch mechanism assuring they are securely locked together, and are compatible with Serial Interface units for both CC-Link and DeviceNet protocols.

• Non-plug-in individual wiring
• Cassette type manifold
• Card edge type connector
• Halogen-free lead wires
• Maximum 20 stations available as standard

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations
SUP, EXH Block Mounting	-- Pick an Option -- U (U Side 2~10 Stations) D (D Side 2~10 Stations) B (Both Sides 2~16 Stations)
Pilot Specification	-- Pick an Option -- Internal Pilot S (Internal Pilot w/Built-in Silencer) R (External Pilot) RS (External Pilot w/Built-in Silencer)
SUP, EXH Block Fitting Spec	-- Pick an Option -- Straight Fitting L (Elbow Fitting, Upward) B (Elbow Fitting, Downward)
DIN Rail Length Specified	-- Pick an Option -- Standard Length 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
