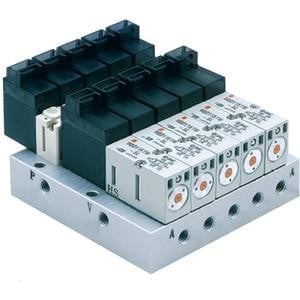

VQD1000-V, Vacuum/Release Unit

VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time.

• Response speed 13 msec (at 500 mm)/18.5 msec (at 1000mm)
• Smooth detachment of a work piece without over-blow
• No need to adjust the timing when switching between vacuum and positive pressure
• No need to design a restrictor circuit for release air
• Operating pressure:  Suction (negative pressure): 0 to -100 kPa, Release (positive pressure) : 0 to 0.7 MPa

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Volume of Release Air Tank: V2	-- Pick an Option -- 0.8 cm³ (See Catalog for Calculation) L [3.2 cm³ (See Catalog for Calculation)]
Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations
Voltage	-- Pick an Option -- 5 (24 VDC) 6 (12 VDC)
Electrical Entry	-- Pick an Option -- L Plug Connector M (M Plug Connector)
