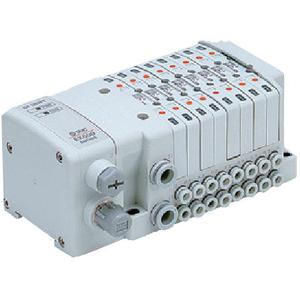

SS0750 Plug-in Stacking Manifold, Decentralized Serial EX500, S Kit

SMC's S0700 series offers a compact valve and manifold design with high flow capacity. The 5 port solenoid valve has a 7mm width, and is available in both plug-in and plug lead types.  Applicable manifolds include serial transmission types, D-sub connectors, flat ribbon cable, PC wiring system compatible, flat ribbon cable, terminal block, lead wire, and circulator connectors.

• Plug-in serial transmission, S kit
• Decentralized serial EX500
• Available w/o serial unit, w/remote I/O, or DeviceNet/PROFIBUS-DP/CC-Link
• 1-8 stations available as standard

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations
Cylinder Port Size	-- Pick an Option -- C2 (One-touch Fitting for ø2) C3 (One-touch Fitting for ø3.2) C4 (One-touch Fitting for ø4) N1 (One-touch Fitting for 1/8") N3 (One-touch Fitting for 5/32")
P, R Port Size	-- Pick an Option -- C8 (One-touch Fitting for ø8) N9 (One-touch Fitting for 5/16")
Kit	-- Pick an Option -- SD0 (w/o Serial Unit) SDA1 (Remote I/O) SDA2 (DeviceNet/PROFIBUS-DP/CC-Link)
SI Unit COM.	-- Pick an Option -- +COM. (or w/o SI Unit) N (-COM.)
Option 1	-- Pick an Option -- None B [Back Pressure Check Valve (All Stations)] D (DIN Rail, Standard Length) D0 (w/o DIN, w/Bracket) BD (B+D) BD0 (B+D0)
Option 2	-- Pick an Option -- None R (External Pilot) S (Built-in Silencer) N (Nameplate) NR (N+R) NS (N+S) RS (R+S) NRS (N+R+S)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
