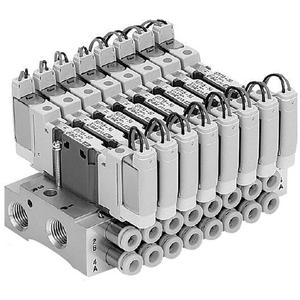

SS0755 Plug Lead Stacking Manifold, Individual Connector, C Kit

SMC's S0700 series offers a compact valve and manifold design with high flow capacity. The 5 port solenoid valve has a 7mm width, and is available in both plug-in and plug lead types.  Applicable manifolds include serial transmission types, D-sub connectors, flat ribbon cable, PC wiring system compatible, flat ribbon cable, terminal block, lead wire, and circulator connectors.

• Plug lead, lead wire C kit
• Individual connector
• 7.5 pitch w/barb fittings
• 8.5 pitch w/one-touch fittings
• Up to 20 stations available as standard

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations
Cylinder Port Size	-- Pick an Option -- C2 (One-touch Fitting for ø2) C3 (One-touch Fitting for ø3.2) C4 (One-touch Fitting for ø4) M3 Thread M5 Thread N1 (One-touch Fitting for 1/8") N3 (One-touch Fitting for 5/32") V2 (Barb Fitting for ø2) V3 (Barb Fitting for ø3.2) V4 (Barb Fitting for ø4)
Port Thread	-- Pick an Option -- Mfld Pitch: 8.5=Rc (PT); 7.5=M5 F [G(PF)] N (NPT) T (NPTF)
External Pilot	-- Pick an Option -- None R (External Pilot)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
