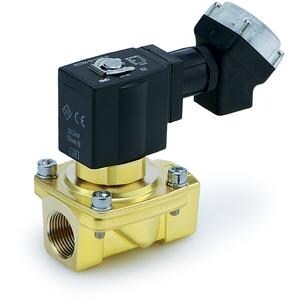

VXEZ, Energy Saving Type, Zero Differential Pressure Type, Pilot Operated, 2 Port Solenoid Valve

SMC has developed the VXE series energy saving type, 2 port solenoid valve to help with environmental issues.  The PWM (Pulse Width Modulation) method was used to allow for less power consumption.  By reducing the energy consumption we have also reduced the heat produced by the coil. This series is available in three styles VXE directed operated, VXED pilot operated, and VXEZ zero differential pressure type pilot operated.   These valves are normally closed, 12 or 24VDC and are available for air, water, or oil applications.

• New generation valve corresponding to energy-saving needs
• Reduction of running cost and of temperature increase
• Body material: Brass (C37), Stainless Steel
• Seal material available: NBR, FKM, EPDM
• Rated voltage: 24VDC, 12VDC

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Model	-- Pick an Option -- 22 23
Orifice Diameter	-- Pick an Option -- 3 (10 mm) 4 (15 mm) 5 (20 mm) 6 (25 mm)
Valve/Body Configuration	-- Pick an Option -- 0 (N.C./Single Unit)
Solenoid Valve Option	-- Pick an Option -- Brass Body (Aluminum for Air Type), NBR Seal, Class B A (Brass Body, FKM Seal, Class B) G (SUS Body, NBR Seal, Class B) H (SUS Body, FKM Seal, Class B) L (SUS Body, FKM, Class B, High Corrosive, Oil-Free)
Suffix	-- Pick an Option -- Standard Z (Oil-free Specification)
Port Size	-- Pick an Option -- 02 (1/4) 03 (3/8) 04 (1/2) 06 (3/4) 10 (1)
Thread Type	-- Pick an Option -- Rc F (G) N (NPT) T (NPTF)
Voltage	-- Pick an Option -- 5 (24VDC) 6 (12VDC)
Lead Wire	-- Pick an Option -- C (Conduit) D (DIN Connector) DL (DIN Connector and Light) DO (DIN Connector without Connector) G (Grommet) T (Conduit Terminal) TL (Conduit Terminal and Light)
Bracket	-- Pick an Option -- None B (Bracket)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
