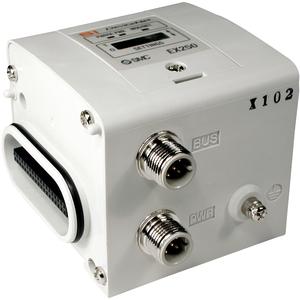

EX250, SI Unit, Integrated Type for Input/Output

EX250 is a serial interface unit controlling up to 32 solenoids.  This serial interface is compatible with series VQC1000/2000/4000 and SV1000/2000/3000 valves.  Available protocols include DeviceNet, CC-Link, AS-i, Profibus-DP, and CANopen.  Input modules can be added or removed at the point of use.

• IP67 enclosure (IP40 for SI unit compatible with ControlNet)
• Maximum 32 inputs/32 outputs
• Connection of sensor with M8/M12 connectors possible
• Available communication protocols include: DeviceNet, PROFIBUS DP, CC-Link, AS-i, CANopen, ControlNet and EtherNet/IP
• Applicable to valves: VQC1000/2000/4000, S0700 and SV1000/2000/3000

Configuration Options

Select Product Options

Amber are not recommended.

	Select values from the drop down lists or make appropriate selections to configure the part number.
Communication Protocol	-- Pick an Option -- DN1 (DeviceNet) DN1-X102 (DeviceNet w/E-stop, Recommended for U.S. Applications) PR1 (PROFIBUS DP) MJ2 (CC-Link) AS3 (AS-i, 8in/8out 31 Slave Mode, 2 Power Supply Systems) AS5 (AS-i, 4in/4out 31 Slave Mode, 2 Power Supply Systems) AS7 (AS-i, 8in/8out 31 Slave Mode, 1 Power Supply System) AS9 (AS-i, 4in/4out 31 Slave Mode, 1 Power Supply System) CA1A (CANopen) CN1 (ControlNet) EN1 (EtherNet/IP)
