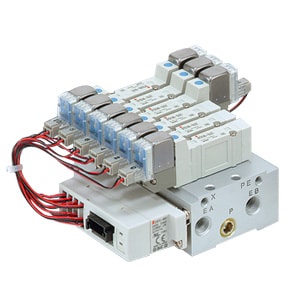

EX510, SI Unit

The EX510 series makes it possible to connect more valves and sensors than with conventional units.  With the introduction of the EX510 series, only a power supply cable to the GW unit is required, resulting in wire-savings.  Setting the address for the SI unit, output unit and input unit is no longer required, only the address for the GW unit needs to be set.  The volume ratio of the EX510 SI unit is 60% more compact than the EX120.

• SI units with a maximum of 16 output points
• 3 mounting types
• Saves the user from assembling the SI unit, valves and wiring to the manifold
• Integrated short circuit protection
• Additional output cables are available so that unused points on the SI unit can be utilized effectively

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Output Specification	-- Pick an Option -- 0 (NPN output (common (+)) 1 (PNP output (common (-))
Applicable Valve Manifold	-- Pick an Option -- 1 (Non-plug-in manifold) 2 (Plug-in manifold)
Mounting Specification	-- Pick an Option -- Screw Mounting A (Mounting vertically on DIN rail) B (Mounting horizontally on DIN rail) C (Mounting horizontally on DIN rail (for SJ manifold))
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
