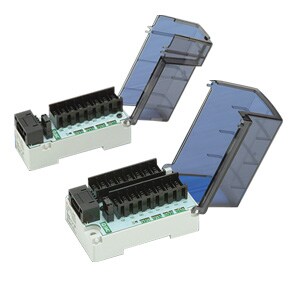

EX510, Input Unit

The EX510 series makes it possible to connect more valves and sensors than with conventional units.  With the introduction of the EX510 series, only a power supply cable to the GW unit is required, resulting in wire-savings.  Setting the address for the SI unit, output unit and input unit is no longer required, only the address for the GW unit needs to be set.  The volume ratio of the EX510 SI unit is 60% more compact than the EX120.

• Input units with a maximum of 16 input points.
• Two models with different input types.
• Compliant to either NPN, PNP or 2-wire sensor inputs.
• Possible to connect a wide range of input devices.
• All input connections are e-con type.
• Fuse protection against short circuiting.
• Possible to mount either directly onto a DIN rail or on the bracket accessory.

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Compliant Sensor	-- Pick an Option -- N (NPN Output) P (PNP Output) B (2-Wire)
Unit Type	-- Pick an Option -- 1 (1 Connector - 2 Input Type) 2 (1 Connector - 1 Input Type)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
