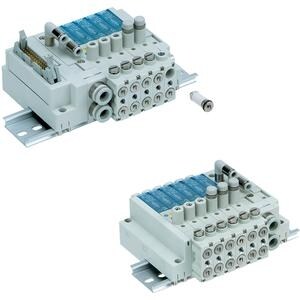

SJ3A6 Series, Vacuum Release Valve w/Restrictor, All Types

Series SJ3A6 is a vacuum release valve equipped with a restrictor to enable flow rate adjustment of release air.  This space saving series is 10mm wide, designed in a cassette type format and uses a card-edge type connector.  The SJ3A6 valves are compatible with Serial Interface units for both CC-Link and DeviceNet protocols.

• Plug-in connector type, non-plug-in individual wiring
• Power saving circuit (continuous duty type)
• Rated voltage: 24VDC and 12VDC
• Connector entry: centralized wiring and individual wiring with or without lead wires
• PS port for detection: with or without plug

Please type in part number from Configuration Options after Part Number is Complete, then press Check Availability button for pricing and quanitity available.  (No spaces and you must include the dashes that are within the Part Number.)

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Coil Specification	-- Pick an Option -- Standard T (w/Power Saving Circuit, Continuous Duty Type)
Valve Type	-- Pick an Option -- Plug-in Connector Type N (Non-Plug-in)
Voltage	-- Pick an Option -- 5 (24VDC) 6 (12VDC)
Connector Entry	-- Pick an Option -- C (Dedicated for Centralized Wiring) M (Individual Wiring, w/Lead Wire Length 300mm) MN (Individual Wiring, w/o Lead Wire) MO (Individual Wiring, w/o Connector)
Light/Surge Voltage Suppressor	-- Pick an Option -- U (w/Light Surge Voltage Suppressor, Non-Polar Type) Z (w/Light Surge Voltage Suppressor, Polar Type)
Switch	-- Pick an Option -- No Switch J (With Switch)
Manual Override	-- Pick an Option -- Non-Locking Push Type D (Push-Turn Locking Slotted Type)
Needle Operation	-- Pick an Option -- Manual D (Slotted Locking Type)
PS Port for Detection	-- Pick an Option -- M5x0.8 P (With Plug, M-5P)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
