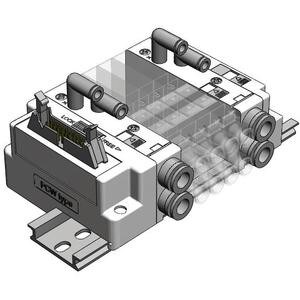

SS3J3-V60-PD/PGD/PHD/JD/GD, Plug-in, Flat Ribbon Cable, Manifold for Vacuum Release Valve w/Restrictor

Series SJ3A6 is a vacuum release valve equipped with a restrictor to enable flow rate adjustment of release air.  This space saving series is 10mm wide, designed in a cassette type format and uses a card-edge type connector.  The SJ3A6 valves are compatible with Serial Interface units for both CC-Link and DeviceNet protocols.

• Flat ribbon cable kit (10, 20, 26 pin), PC wiring with or without power supply terminal
• Vacuum release valve manifold with restrictor
• P type kit: Maximum 12 stations available as standard
• PG type kit: Maximum 9 stations available as standard
• PH type kit: Maximum 4 staitons available as standard
• JD and GD type kit: Maximum 8 stations available as standard

Please type in part number from Configuration Options after Part Number is Complete, then press Check Availability button for pricing and quanitity available.  (No spaces and you must include the dashes that are within the Part Number.)

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Flat Ribbon Cable Type	-- Pick an Option -- PD (26 Pins) PGD (20 Pins) PHD (10 Pins) GD (PC Wiring, w/Power Supply Terminal) JD (PC Wiring, w/o Power Supply Terminal)
Connector Entry Direction	-- Pick an Option -- 1 (Upward) 2 (Lateral)
Valve Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
SUP, EXH Block Mounting	-- Pick an Option -- U (U Side 2~10 Stations) D (D Side 2~10 Stations) B (Both Sides 2~16 Stations)
SUP, EXH Block Fitting Spec	-- Pick an Option -- Straight Fitting L (Elbow Fitting, Upward) B (Elbow Fitting, Downward)
DIN Rail Length	-- Pick an Option -- Standard Length 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
