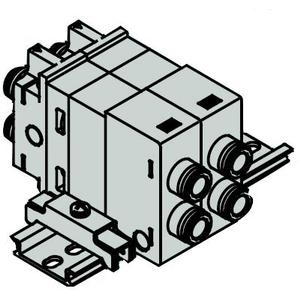

VQ1000/2000 Double Check Block, Separate Type

SMC's double check block for the separated type VQ1000/2000 can be used on the outlet side piping to keep a cylinder in the intermediate position for a long time. Combining the double check block with a built-in pilot type double check valve and a 3 position exhaust center solenoid valve, will enable the cylinder to stop in the middle or maintain its position for an extended period of time.

Double check block for separated type VQ1000 & VQ2000
Max operating pressure: 0.8MPa
Min. operating pressure: 0.15MPa
Ambient & fluid temp: -5 to 50°C

Please type in part number from Configuration Options after Part Number is Complete, then press Check Availability button for pricing and quanitity available. (No spaces and you must include the dashes that are within the Part Number.)

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Series
IN Port Size
OUT Port Size
Option
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
