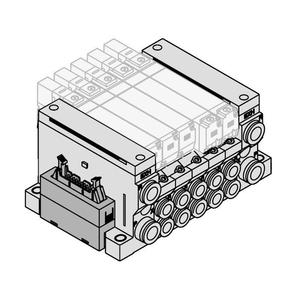

VV5Q21-J, 1000 Series, Base Mounted Manifold, Plug-in Type, Flat Ribbon Cable

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Flat ribbon cable connector for VQ2000 valves
• Top or side receptacle position
• Max. 8 stations as standard
• One-touch fittings

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations
Cylinder Port	-- Pick an Option -- B4 (Elbow Bottom Porting w/ø4 One-touch Fitting) B6 (Elbow Bottom Porting w/ø6 One-touch Fitting) B8 (Elbow Bottom Porting w/ø8 One-touch Fitting) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) L4 (Elbow Top Ported ø4 One-touch Fitting) L6 (Elbow Top Ported w/ø6 One-touch Fitting) L8 (Elbow Top Ported w/ø8 One-touch Fitting) BN3 (Elbow Bottom Porting 5/32" One-touch Fitting) BN7 (Elbow Bottom Porting 1/4" One-touch Fitting) BN9 (Elbow Bottom Porting 5/16" One-touch Fitting) LN3 (Elbow Top Piping 5/32" One-touch Fitting) LN7 (Elbow Top Piping 1/4" One-touch Fitting) LN9 (Elbow Top Piping 5/16" One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
Connector Entry Direction	-- Pick an Option -- U (Top Entry) S (Side Entry)
Cable Length	-- Pick an Option -- 0 (w/o Cable) 1 (Cable, 1.5m) 2 (Cable, 3m) 3 (Cable, 5m)
Option 1	-- Pick an Option -- None B (Back Pressure Check Valve, All Stations) B+D B+D0 D (DIN Rail Mounting) D0 (DIN Rail Bracket w/o DIN Rail)
DIN Rail Length	-- Pick an Option -- Not Applicable 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations 17 Stations 18 Stations 19 Stations 20 Stations 21 Stations 22 Stations 23 Stations 24 Stations
Option 2	-- Pick an Option -- None N (Name Plate) N+R N+R+S N+S R (External Pilot) R+S S (Direct EXH Outlet w/Built-in Silencer)
CE Compliant	-- Pick an Option -- No Q (CE Compliant)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
