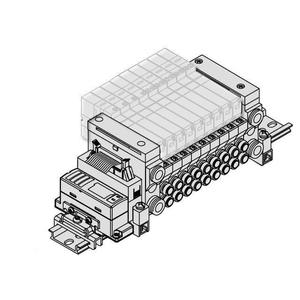

VV5Q21-SB, Base Mounted Manifold for EX510 Gateway Type Serial Transmission System

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

• Manifold for EX510 Gateway type serial transmission system
• IP20 enclosure compliant
• Max. 8 stations as standard
• One-touch fittings

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
SI Unit Specifications	-- Pick an Option -- NPN Output, +COM N (PNP Output, -COM)
Valve Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations
Cylinder Port	-- Pick an Option -- B4 (Elbow Bottom Porting w/ø4 One-touch Fitting) B6 (Elbow Bottom Porting w/ø6 One-touch Fitting) B8 (Elbow Bottom Porting w/ø8 One-touch Fitting) C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) C8 (ø8 One-touch Fitting) L4 (Elbow Top Ported ø4 One-touch Fitting) L6 (Elbow Top Ported w/ø6 One-touch Fitting) L8 (Elbow Top Ported w/ø8 One-touch Fitting) BN3 (Elbow Bottom Porting 5/32" One-touch Fitting) BN7 (Elbow Bottom Porting 1/4" One-touch Fitting) BN9 (Elbow Bottom Porting 5/16" One-touch Fitting) LN3 (Elbow Top Piping 5/32" One-touch Fitting) LN7 (Elbow Top Piping 1/4" One-touch Fitting) LN9 (Elbow Top Piping 5/16" One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting) N9 (5/16" One-touch Fitting)
Option 1	-- Pick an Option -- None B (Back Pressure Check Valve, All Stations) B+D B+D+0 D (DIN Rail Mounting) D0 (DIN Rail Bracket w/o DIN Rail)
DIN Rail Length	-- Pick an Option -- Not Applicable 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations 13 Stations 14 Stations 15 Stations 16 Stations
Option 3	-- Pick an Option -- None N (Name Plate) N+R N+R+S N+S R (External Pilot) R+S S (Direct EXH Outlet w/Built-in Silencer)
CE Compliant	-- Pick an Option -- No Q (CE Compliant)
