FMW-4300-X Series
Adjustable 4 Amp Low Deadband Vacuum Switch
The FMW-4300-X Series vacuum to electric switch is designed for the customer with low deadband requirements and is available in adjustment ranges from 5 to 30" Hg full scale. A wide variety of options including factory pre-set and special deadbands, make the FMW-4300-X series an excellent choice for the O.E.M.
Specifications
- Contact Form: Single Pole, Double Throw
- Terminations: .110 Quick-Connect
- Agency Compliances: UL / CSA Approved Microswitch
- Operating Speed: 25 MSEC
- Materials:
- Body: Polysulfone
- Diaphragm: Polyurethane
- Spring: Stainless Steel
- Other: Nylon, Carbon Filled Nylon, Acetal
- Temperature Range: 40° - 150° F (4° - 66° C)
- Repeatability: ±2% F.S. OR .15" Hg, whichever is greater, after 10,000 cycles
- Weight: 20 grams
| Part Number | Adjustment Range (In. Hg) | Maximum Overpressure (In. Hg) | Deadband (In. Hg) | Std. Current Rating | ||
|---|---|---|---|---|---|---|
| Min. | Max. | Typ. | Max. | |||
| FMW-4300-X5 | .2 | 5 | 30 | .3 | .6 | 4A |
| FMW-4300-X10 | .5 | 10 | 30 | .6 | 1.0 | 4A |
| FMW-4300-X30 | 1.5 | 30 | 30 | 1.0 | 1.5 | 4A |

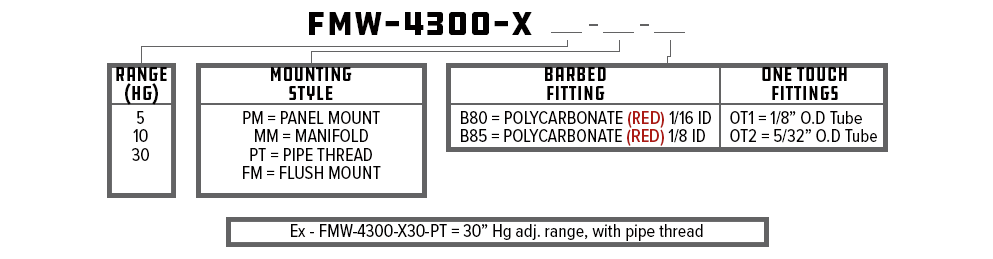

Ordering Information
Stocked Configurations Below Can Ship Same Day
| Part Number | Description |
|---|---|
| FMW-4300-X30-FM-B80 | 30 Hg, Flush Mount, Nylon 1/16" ID Barbed Fitting |
| FMW-4300-X30-FM-B85 | 30 Hg, Flush Mount, Nylon 1/8" ID Barbed Fitting |
| FMW-4300-X30-FM-OT1 | 30 Hg, Flush Mount, 1/8" O.D. Tube One Touch Fitting |
| FMW-4300-X30-FM-OT2 | 30 Hg, Flush Mount, 5/32" O.D. Tube One Touch Fitting |
| FMW-4300-X30-PM-B80 | 30 Hg, Panel Mount, Nylon 1/16" ID Barbed Fitting |
| FMW-4300-X30-PM-B85 | 30 Hg, Panel Mount, Nylon 1/8" ID Barbed Fitting |
| FMW-4300-X30-PM-OT1 | 30 Hg, Panel Mount, 1/8" O.D. Tube One Touch Fitting |
| FMW-4300-X30-PM-OT2 | 30 Hg, Panel Mount, 5/32" O.D. Tube One Touch Fitting |
