VMW-140 Series

High Flow Vacuum Regulator - 1/8" - 1/4" NPT or 1/4" - 5/16" Push to Connect
The VMW-140 Series vacuum regulators are designed for applications requiring high precision in a miniature package. Hysteresis free adjustments are made through a non-rising stem. Units may be base mounted, or panel mounted.
Applications
- Medical Equipment
- Laboratory Instruments
- Pick 'n Place
- Process Control
Specifications
- Regulator Type: Vacuum Relieving
- Wetted Materials: Cast Aluminum, Buna-N, EPDM, Acetal, Polyurethane, Stainless Steel
- Supply Consumption: .6 LPM
- Max Supply: 30” (760 mm) Hg
- Temperature Range: 40° - 150° F (4° - 66° C)
- Effect of Supply Variation: ± 5% of span
- Sensitivity: 5” H2O
- Maximum Flow: 140 LPM
- Recommended Filtration: 5 micron

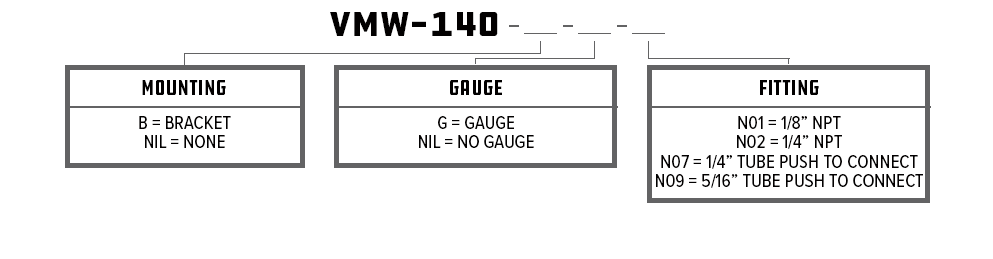

Ordering Information

Stocked Configurations Below Can Ship Same Day
Part Number | Description | Price |
---|---|---|
VMW-140-N07 | 1/4" Push to Connect Fitting | $61.00 |
VMW-140-N09 | 5/16" Push to Connect Fitting | $61.00 |
VMW-140-B-N07 | With Bracket, 1/4" Push to Connect Fitting | $62.00 |
VMW-140-B-N09 | With Bracket, 5/16" Push to Connect Fitting | $62.00 |
VMW-140-G-N07 | With Gauge, 1/4" Push to Connect Fitting | $70.00 |
VMW-140-G-N09 | With Gauge, 5/16" Push to Connect Fitting | $70.00 |
VMW-140-B-G-N07 | With Bracket, Gauge, 1/4" Push to Connect Fitting | $71.00 |
VMW-140-B-G-N09 | With Bracket, Gauge, 5/16" Push to Connect Fitting | $71.00 |
VMW-140-N01 | 1/8" NPT Fitting | $122.00 |
VMW-140-B-N01 | With Bracket, 1/8" NPT Fitting | $123.00 |
VMW-140-N02 | 1/4" NPT Fitting | $124.00 |
VMW-140-B-N02 | With Bracket, 1/4" NPT Fitting | $125.00 |
VMW-140-G-N01 | With Gauge, 1/8" NPT Fitting | $151.00 |
VMW-140-B-G-N01 | With Bracket, Gauge, 1/8" NPT Fitting | $152.00 |
VMW-140-G-N02 | With Gauge, 1/4" NPT Fitting | $153.00 |
VMW-140-B-G-N02 | With Bracket, Gauge, 1/4" NPT Fitting | $154.00 |
