VPMW-700 Series

Adjustable Vacuum Piloted 3 Way Pressure Switch

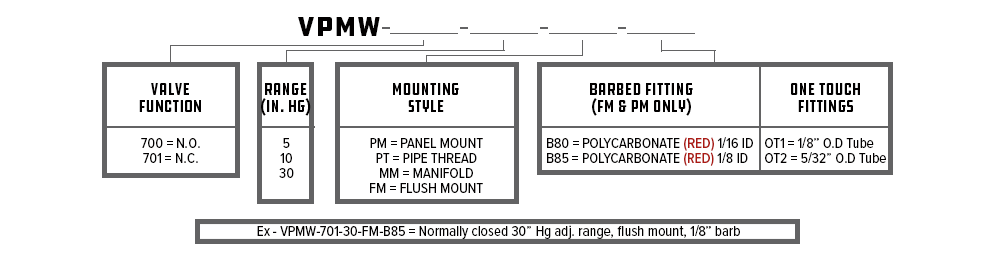

The 700 vacuum series is a vacuum piloted 3-way valve with a positive pressure output. Perfect for use in applications which require intrinsic safety, pneumatic sequencing, and precise pressure relief. Three mounting styles are available for design flexibility. Valves can be ordered as normally open or normally closed and pilot actuation can be factory preset.

Specifications

• Valve Type: 3-Way (Exhaust to Atmosphere) Air Assisted Servo
• Operating Pressure:
  • Pilot: Vacuum 1 - 30 In. Hg
  • Valve: 20 - 115 psi (Pressure Only)
• Operating Speed: 64 MSEC @ 90 psi Valve Input
• Porting: Valve = 5/32 OD Tube Push In
• Flow Rate:
  • Cv: .06
  • Orifice: = 0.080
  • 2.5 CFM @ 100 psi
• Supply Consumption:
  • Approx. 275 cc/min @ 30 psi Valve Input
  • Approx. 700 cc/min @ 100 psi
• Materials:
  • Pilot
    • Body: Polysulfone
    • Diaphragm: Polyurethane
    • Spring: Stainless Steel
    • Other: Nylon, Acetal
  • Valve
    • Housing: Nylon
    • Plunger: Aluminum
    • Seals: Buna-N
    • Other: Brass
• Operating Temperature: 40° - 150° F (4° - 66° C)
• Repeatability: Less than ±2% of full scale pilot adjustment
• Effect of Supply: Less than 0.1 In. Hg increase in pilot setpoint per 5 psi increase in supply
• Media: Filtered Air (5 micron)
