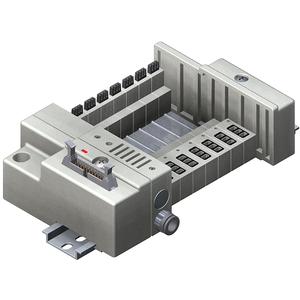

SS5Q13-P, 1000 Series Plug-in Manifold, Flat Ribbon Cable Connector Kit

The 5 port solenoid valves series SQ was designed for applications which demand high speed, high frequency, long life and a precise response time. The SQ series has an outstanding response time of 12ms or less for SQ1000, 20ms or less for SQ2000 and a life of 200 million cycles. A wide variety of options are available.

• SQ1000, plug-in type manifold
• Flat ribbon cable connector kit
• Maximum stations as standard-12
• Maximum number of solenoids-24
• 20 or 26 pin connector available

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Stations	-- Pick an Option -- 1 Station 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
Manifold Type	-- Pick an Option -- PD0 (Flat Ribbon Cable 26P w/o Cable) PD1 (Flat Ribbon Cable w/1.5m) PD2 (Flat Ribbon Cable w/3.0m) PD3 (Flat Ribbon Cable w/5.0m) PDC (Flat Ribbon Cable 20P w/o Cable)
Manifold Mount Style	-- Pick an Option -- D (DIN Rail Mounting) E (Direct Mount Type)
Option	-- Pick an Option -- None B (Back Pressure Check Valve for All Stations) BN (Back Pressure Check Valves, Name Plate) BNR (Back Pressure Check Valves, Name plate, External Pilot) BNRS (Back Pressure Check Valves, Name Plate, External Pilot, Silencer) BNS (Back Pressure Check Valves, Name Plate, Silencer) BR (Back Pressure Check Valves, External Pilot) BRS (Back Pressure Check Valves, External Pilot, Silencer) BS (Back Pressure Check Valves, Silencer) N (Name Plate) NR (Name Plate, External Pilot) NRS (Name Plate, External Pilot, Silencer) NS (Name Plate, Silencer) R (External Pilot) RS (External Pilot, Silencer) S (Built-in Silencer, Direct Exhaust)
One-touch Fitting	-- Pick an Option -- ø8 (C8) One-touch Fitting 00T (N9 5/16" One-touch Fitting)
