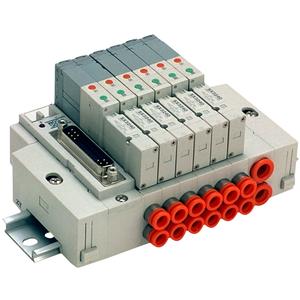

SS5X3-45*F, 3000 Series, Stacking Manifold, D-sub Connector

The SX series unique design combines both solenoid assemblies (when using double solenoid 2/3 position) on the same side of the valve, opposite the ports, allowing for greater space savings and simplified wiring access. The SX series valves are available with numerous manifold options which allow for easier installation and improved operation.

• Stacking manifold, DIN rail mounted
• D-sub connector, plug-in type
• Base mounted manifold
• Valve stations: 02 to 10 as standard
  (11 to 20 requires manifold specform)
• One-touch fittings: C4, C6, N3, N7

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Common	-- Pick an Option -- +COM N (-COM)
Connector Mounting Position	-- Pick an Option -- D Side U Side
Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations
SUP/EXH Block Mounting	-- Pick an Option -- B (Both Sides 2~16 Stations) D (D Side 2~10 Stations) U (U Side 2~10 Stations)
Specifications	-- Pick an Option -- Standard Internal Pilot R (External Pilot) RS (External Pilot, Silencer) S (Internal Pilot, Built-in Silencer)
Port Size	-- Pick an Option -- C4 (ø4 One-touch Fitting) C6 (ø6 One-touch Fitting) N3 (5/32" One-touch Fitting) N7 (1/4" One-touch Fitting)
Voltage Specification	-- Pick an Option -- 12VDC 24VDC
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
