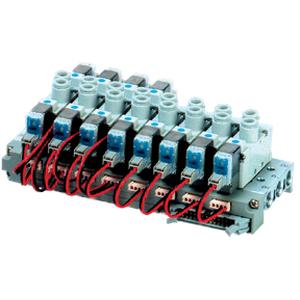

SS5YJ5, 5000 Series, Bar Stock Manifold, Flat Ribbon Cable

The SYJ Valve is an innovative combination of space efficiency and performance superiority which provides real value to the design solution. Whether designed in a manifold or used as a single valve, this small profile increases design flexibility and minimizes space requirements. The SYJ valve utilizes a low power (0.5 watts standard) pilot solenoid design, which dramatically reduces thermal heat generation. This improves performance, decreases operating costs, and allows for direct control by PLC output relays. All electrical connections for SYJ Valves are available with lights and surge suppression. SYJ series valves can be configured on base mounted manifolds, or individually on subplates, creating a variety of solutions to meet your broadest engineering needs.

• Stacking type manifold for SYJ5000 valves
• Common supply, common exhaust
• 26 pin connector for wiring to valves
• Maximum 12 stations available as standard
• 5 port sizes available

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Piping	-- Pick an Option -- 20P (Body Ported Common SUP Common EXH Flat Cable) 41P (Base Mounted Common SUP Common EXH, Flat Cable) 43P (Base Mounted Common SUP Individual EXH, Flat Cable)
Stations	-- Pick an Option -- 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
A, B Port	-- Pick an Option -- None 00F (G) 00N (NPT) 00T (NPTF) C4 (ø4 One-touch Fitting) M5T (M5X0.8 NPTF)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
