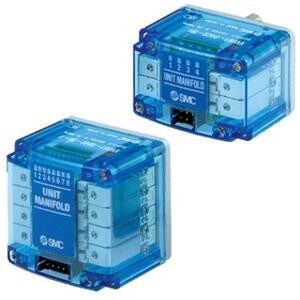

VV061, 3 Port, Direct Operated , Compact Solenoid Valve

The VV061 series is a direct operated 3-way solenoid valve designed for 4 and 8 station units with integrated compact manifold, valve, circuit board, base and fittings forming a single compact unit.  VV061 series model has an optional power saving circuit that can be used for long-term continuous duty.  This unit is available with one-touch or barb fitting and an optional connector cable with lengths of 300, 600, or 1000mm.

• Compact direct operated 3 port solenoid valve
• Operating pressure ranges: 0~0.7MPa (standard) and 0~0.3MPa (large-flow type)
• Dustproof enclosure
• CE marking compliant
• Options include barb or one-touch fittings, power-saving circuit, connector cable, and bracket

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Valve Stations	-- Pick an Option -- 04 (4 Stations) 08 (8 Stations)
Port Size	-- Pick an Option -- 40 (Barb Fitting) C2 (ø2 One-Touch Fitting)
Voltage	-- Pick an Option -- 5 (24VDC) 6 (12VDC)
Coil Specifications	-- Pick an Option -- Standard (w/Light Surge Voltage Suppressor) T [w/Power-Saving Circuit (Continuous Duty Type)]
Operating Pressure Range	-- Pick an Option -- H [Standard (0 to 0.7 MPa)] L [High Flow Type (0 to 0.3 MPa)]
Connector Cable	-- Pick an Option -- None C1 (Length 300mm) C2 (Length 600mm) C3 (Length 1000mm)
Bracket	-- Pick an Option -- None F (With Bracket)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
