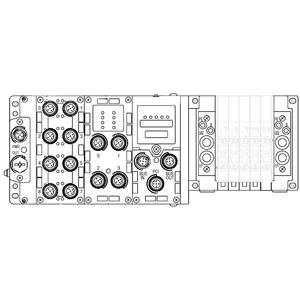

SS5Y3-12M, 3000 Series Manifold, Circular Connector (IP67)

SMC has improved product performance and reliability with the redesigned SY series valve.  The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, Ozone resistance has been improved.   Side, top and bottom port/pipe directions are available to allow flexible installation.  The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.

• Plug-in connector connecting base
• Top ported
• Available with external pilot
• Circular connector kit
• One-touch fittings

Configuration Options

Select Product Options

	Select values from the drop down lists or make appropriate selections to configure the part number.
Valve Stations	-- Pick an Option -- 2 Stations 3 Stations 4 Stations 5 Stations 6 Stations 7 Stations 8 Stations 9 Stations 10 Stations 11 Stations 12 Stations
P,E Port Location	-- Pick an Option -- U Side D Side B (Both Sides)
SUP/EXH Block	-- Pick an Option -- Internal Pilot R (External Pilot) S (Internal Pilot, Built-in Silencer)
P,E Port Size	-- Pick an Option -- ø8 One-touch Fitting N (ø5/16" One-touch Fitting)
Mounting	-- Pick an Option -- Direct Mounting D (DIN Rail Mounting w/DIN Rail) D0 (DIN Rail Mounting w/o DIN Rail) D3 (Longer than Standard DIN Rail) D4 (Longer than Standard DIN Rail) D5 (Longer than Standard DIN Rail) D6 (Longer than Standard DIN Rail) D7 (Longer than Standard DIN Rail) D8 (Longer than Standard DIN Rail) D9 (Longer than Standard DIN Rail) D10 (Longer than Standard DIN Rail) D11 (Longer than Standard DIN Rail) D12 (Longer than Standard DIN Rail) D13 (Longer than Standard DIN Rail) D14 (Longer than Standard DIN Rail) D15 (Longer than Standard DIN Rail) D16 (Longer than Standard DIN Rail) D17 (Longer than Standard DIN Rail) D18 (Longer than Standard DIN Rail) D19 (Longer than Standard DIN Rail) D20 (Longer than Standard DIN Rail) D21 (Longer than Standard DIN Rail) D22 (Longer than Standard DIN Rail) D23 (Longer than Standard DIN Rail) D24 (Longer than Standard DIN Rail)
	Options in: Gray are not compatible with other selected option value. Red conflict with another selected option value. Amber are not recommended.
